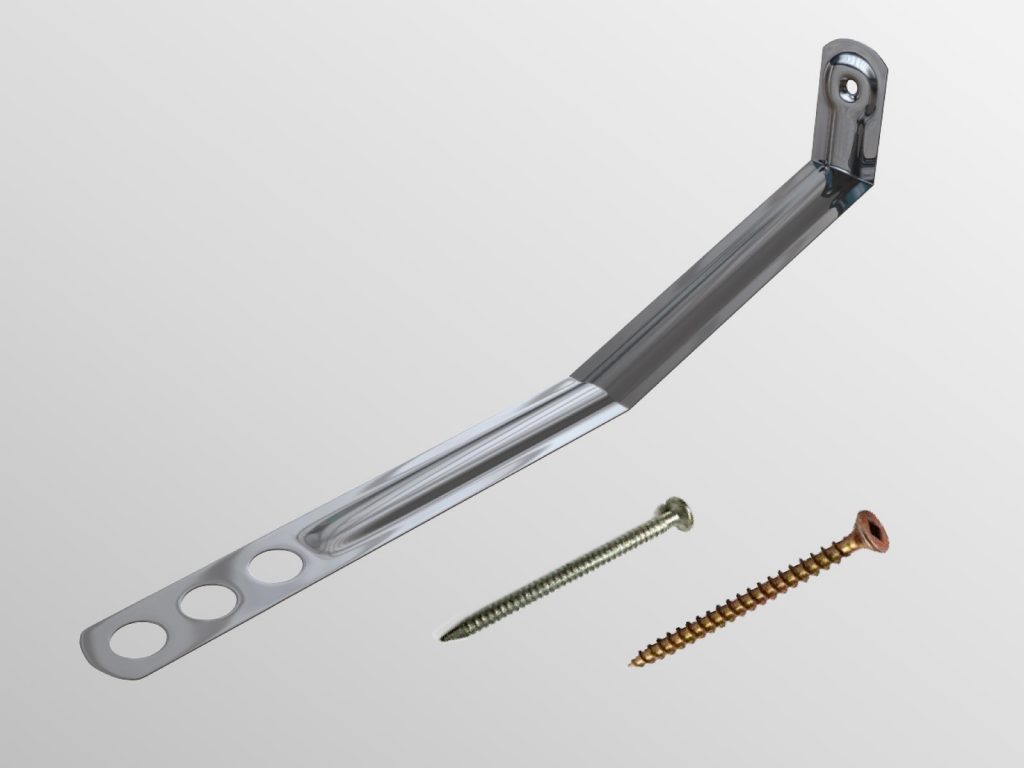

V61 Timber Frame Ties

Stainless steel masonry-timber tie for domestic and small commercial buildings up to four storeys high. Suitable for buildings with a maximum height if 15m and cavity widths from 50-100mm. Designed to accommodate vertical movement. (Type 6 Tie)

UKCA logo
Code Size Units
V61-125-STST 125mm (50 cavity) 250 box
V61-150-STST 150mm (75 cavity) 250 box
V61-175-STST 175mm (100 cavity) 250 box

Supplied complete with 50mm x 3.35mm Stainless Steel Annular Ring Nails. Also available with 50mm x 4.0mm Stainless Steel Screws for SIPS panels.

  • Application – This type of timber frame wall tie is right for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level.
  • Design – Masonry-timber tie for timber frame buildings that accommodates vertical movement.
  • Material – Manufactured from grade 304 stainless steel
  • Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
  • Durability – excellent corrosion resistance and a service life of not less than 60 years
  • Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
  • Compliance – Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
