V62 High Movement Timber Frame Ties

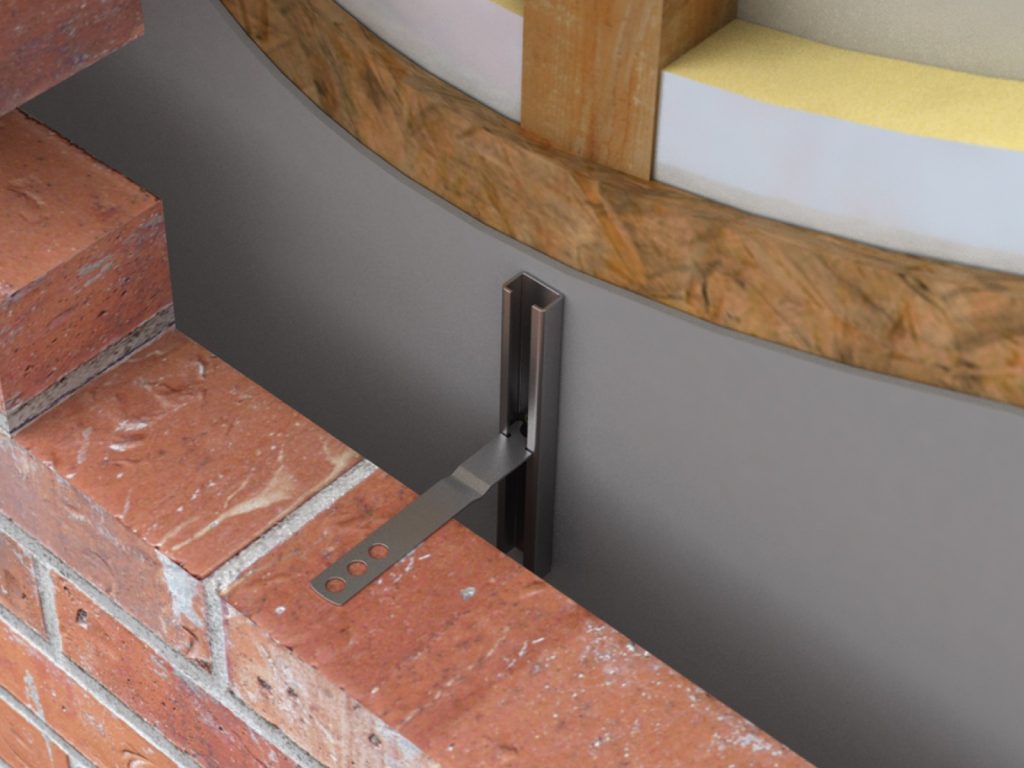

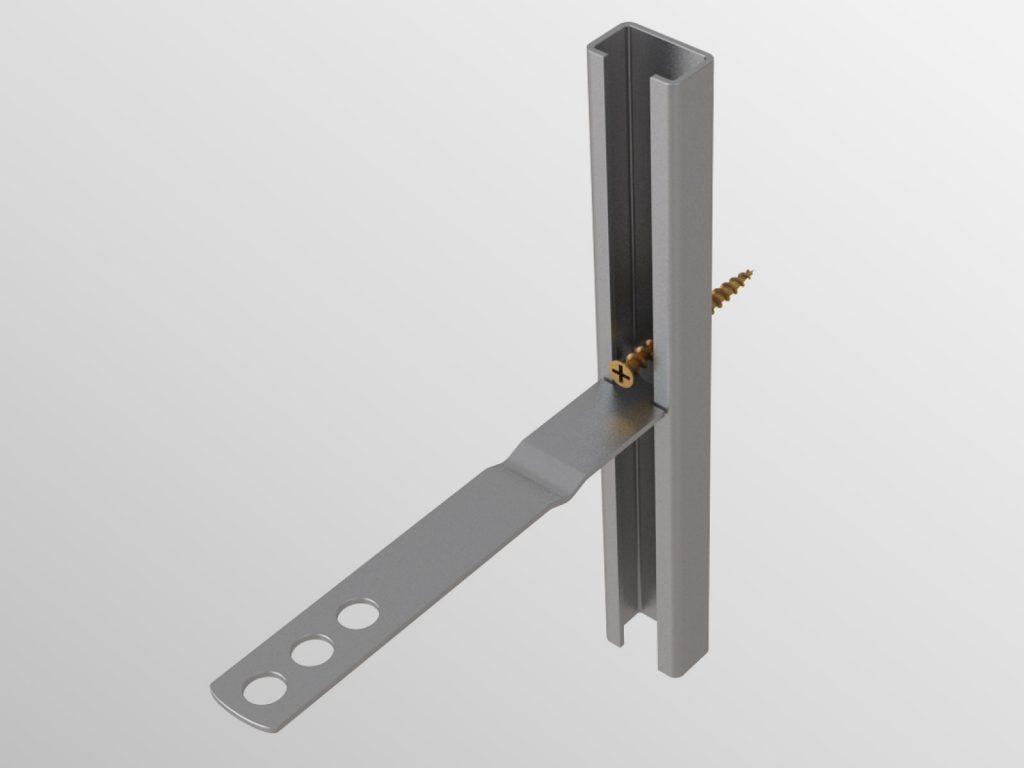

Channel and strip tie system for use where the building height is up to 18m (5-7 stories). Maximum differential movement of 65mm. Fits cavities from 50-150mm. Supplied with 50mm x 4mm stainless steel screws (Type 7 Tie)

Code Sizes Units
V62-100-STST 100mm (50 cavity) 250 box
V62-125-STST 125mm (75 cavity) 250 box
V62-150-STST 150mm (100 cavity) 250 box
V62-175-STST 175mm (125 cavity) 250 box
V62-200-STST 200mm (150 cavity) 250 box

Supplied with 50mm x 40mm stainless steel screws (250 per box)

  • Application – This type of timber frame wall tie is right for domestic dwellings and small commercial buildings from 5 to 7 storeys high. They are suitable for buildings with a maximum height if 18m. Their suitability should be calculated for each location and the Vista technical team are  happy to assist.
  • Design – Channel and strip tie system. Maximum differential movement of 65mm.
  • Material – Manufactured from grade 304 stainless steel
  • Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
  • Durability – excellent corrosion resistance and a service life of not less than 60 years
  • Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
  • Compliance – Tested as Type B (sound) and as Type 7 (strength) to BS EN 845-1
