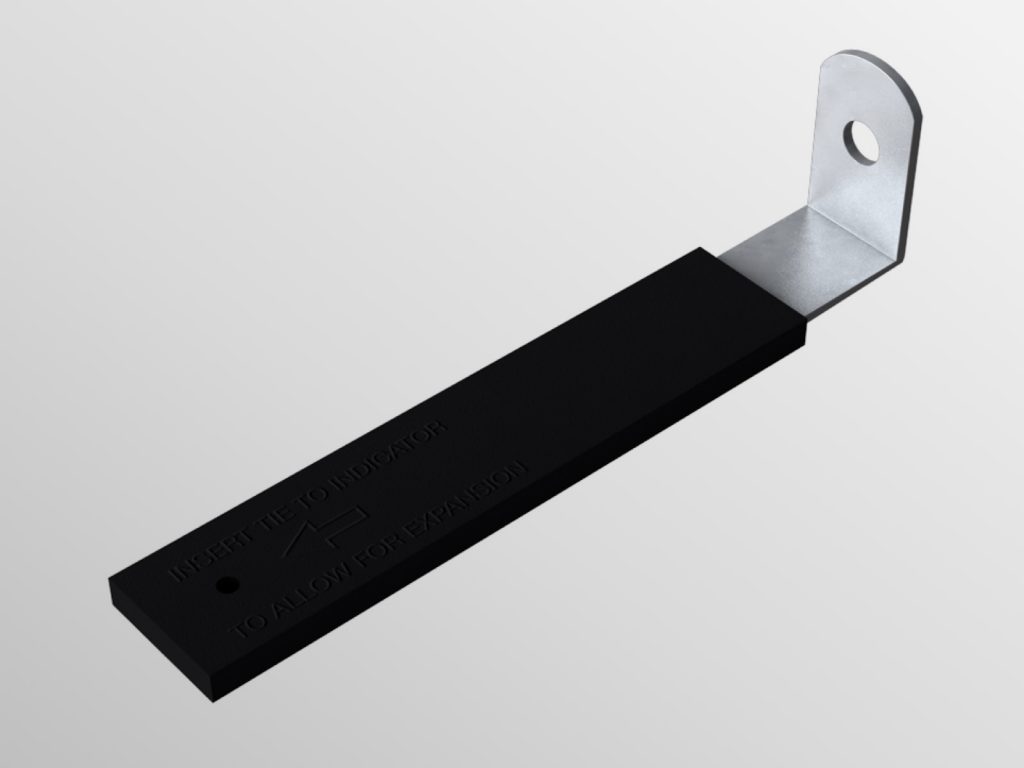

V7PE Plain End Frame Cramp

Used for restraining masonry to steelwork whilst allowing lateral movement. (Sleeve supplied as extra).

UKCA logo
Code Sizes (Projection) Units
V7PE-75-300mm 75mm 250 box
V7PE-100-STST 100mm 250 box
V7PE-125-STST 125mm 250 box
V7PE-150-STST 150mm 250 box
V7PE-175-STST 175mm 250 box
V7PE-200-STST 200mm 250 box
V7PE-225-STST 225mm 200 box
V7PE-250-STST 250mm 200 box
V7PE-275-STST 275mm 200 box
V7PE-300-STST 300mm 200 box
  • Design – Used for restraining masonry to steelwork whilst allowing lateral movement. (Sleeve supplied as extra)
  • Material – Manufactured from  grade 304 stainless steel
  • Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
  • Durability – excellent corrosion resistance and a service life of not less than 60 years
  • Compliance – Tested in Shear to BS EN 846-7:2012.  Shear Load Capacity 1180N
