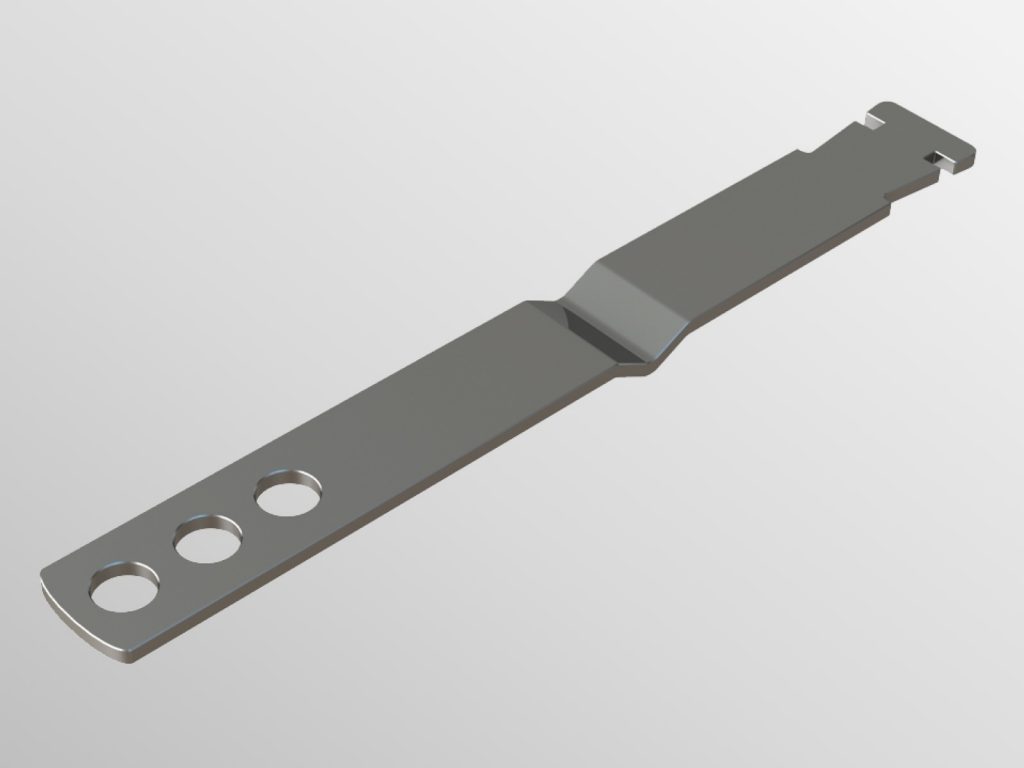

VS8D Dovetail Safety Ties with Drip

The universal head enables this tie to be used with all V60 channel systems and V29 slot to restrain brickwork supplied with a drip to prevent the passage of moisture across cavity. Drip positioned 90mm from safety end as standard.

Code Sizes (Projection)* Units
VS8D-100-STST 100mm 250 Box
VS8D-125-STST 125mm 250 Box
VS8D-150-STST 150mm 250 Box
VS8D-175-STST 175mm 250 Box
VS8D-200-STST 200mm 250 Box
VS8D-225-STST 225mm 200 Box
VS8D-250-STST 250mm 200 Box

*Projection length from safety end to shoulder. Notched head length 29mm.

  • Design – The universal head enables this tie to be used with all V60 channel systems and V29 slot to restrain brickwork supplied with a drip to prevent the passage of moisture across cavity. Drip positioned 90mm from safety end as standard.
  • Material – Manufactured from grade 304 stainless steel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
