VTS Vista Tie Span

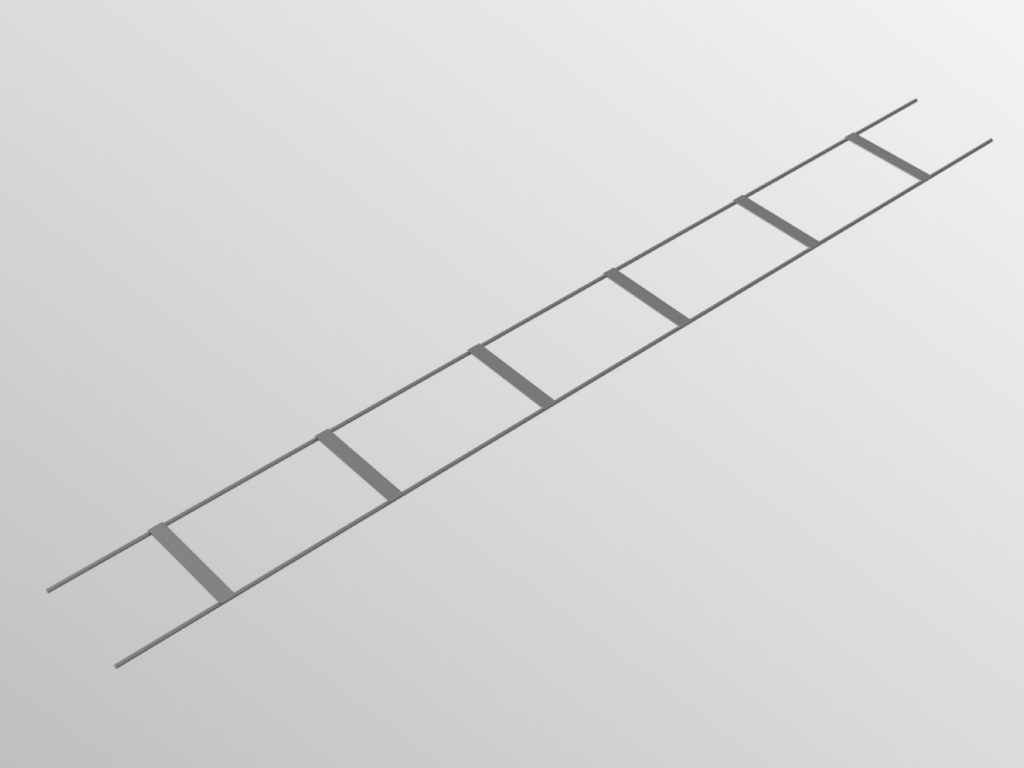

Vista Tie Span Type 1 has been designed for use in double-leaf collar joint walls, and can reduce the problems on site with heavy blocks, using 2 x 100mm blocks tied together with Tiespan type 1 to replace a 215mm block. This method of construction also gives the wall a 6 hour fire rating. Tiespan type 1 is manufactured with 4mm or 3.5mm main longitudinal wires with 20mm flat cross ties. Each length is 2700mm long x 175mm wide.

Code Product Width Length Units
VTS-175-STST175 175mm 2700mm
  • Design – Vista Tie Span Type 1 has been designed for use in double-leaf collar joint walls, and can reduce the problems on site with heavy blocks, using 2 x 100mm blocks tied together with Tiespan type 1 to replace a 215mm block. This method of construction also gives the wall a 6 hour fire rating. Tiespan type 1 is manufactured with 4mm or 3.5mm main longitudinal wires with 20mm flat cross ties. Each length is 2700mm long x 175mm wide.
  • Material – Manufactured from grade 304 S15 stainless steel. Also available in galvanised streel.
  • Behaviour in relation to fire – Non combustible (as defined in the national Building Regulations).
  • Durability – Excellent corrosion resistance and a service life of not less than 60 years.
