HELICAL TIE Timber Frame Wall Ties

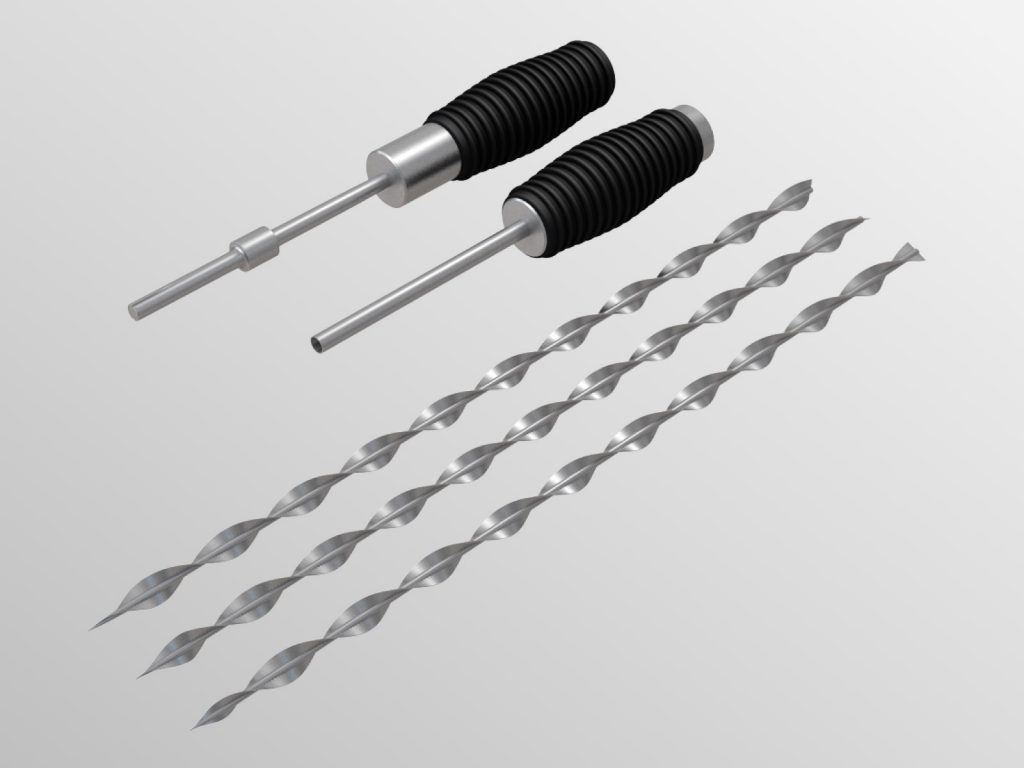

A 4.5mm newbuild stainless steel masonry-timber tie for domestic and small commercial buildings up to four storeys high. Suitable for buildings with a maximum height if 15m and cavity widths up to 165mm. Designed to secure external masonry to timber frames. (Type 6 Tie)

Downloads

Code	Size	Cavity widths	Units
HELI-4.5-ONE-170	170mm	up to-50mm	100 box
HELI-4.5-ONE-195	195mm	51-75mm	100 box
HELI-4.5-ONE-220	220mm	76-100mm	100 box
HELI-4.5-ONE-245	245mm	101-125mm	100 box
HELI-4.5-ONE-270	270mm	126-150mm	100 box
HELI-4.5-ONE-295	295mm	151-165mm	100 box

Application – This type of timber frame wall tie is right for domestic and small commercial builds up to four storeys high. They are suitable for buildings with a maximum height if 15m and for flat sites where the basic wind speed is up to 25m/s and altitude is not greater than 150m above sea level.
Design – This tie has the advantage of being suitable for use where the cavity is up to 165mm. It will accommodate maximum vertical differential movement of 24mm.
Material – Manufactured from grade 304 stainless steel
Behaviour in relation to fire – non combustible (as defined in the national Building Regulations)
Durability – excellent corrosion resistance and a service life of not less than 60 years
Thermal performance – In situations where thermal losses through ties need to be taken into account, the products will adequately resist thermal transmittance through a wall cavity
Compliance – Tested as Type B (sound) and as Type 6 (strength) to BS EN 845-1
