GTS Girder Truss Shoe

Used to attach and support roof truss from girder truss. Higher qualified load performance and increased hole centres to spread load over a greater area. Manufactured from 1.2mm thick material.

UKCA logo
CE logo
Product Details

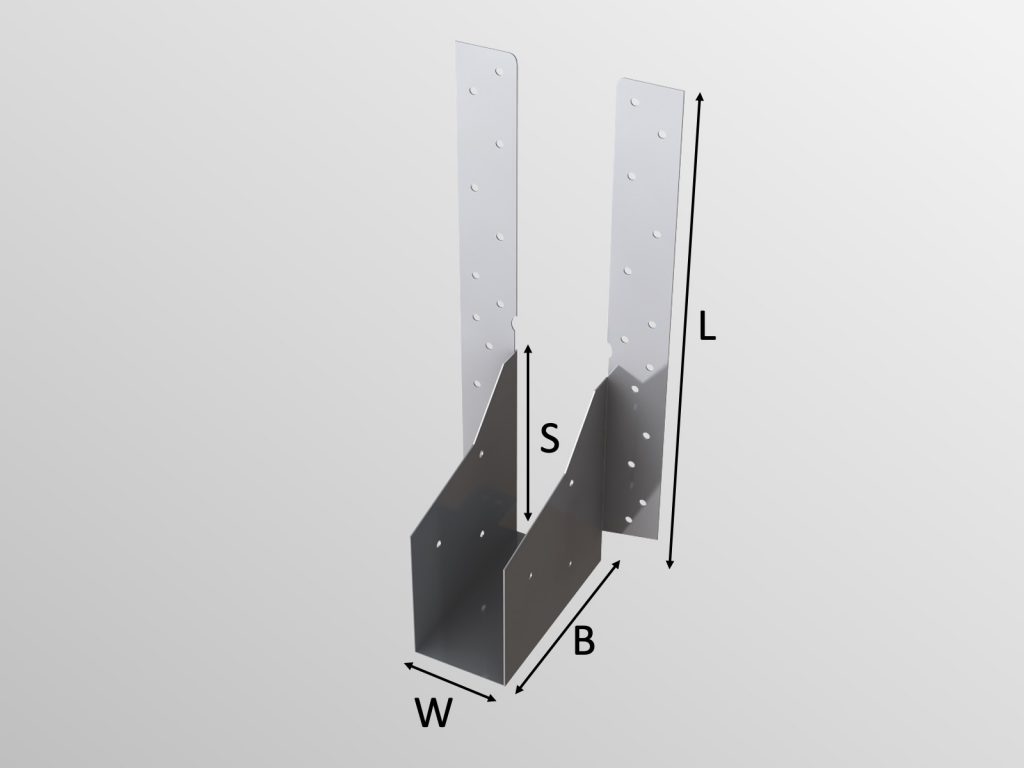

Product code Dimensions (mm) Box Quantities
GTS800/38 38 343 100 116 50
GTS800/44 44 50
GTS800/47 47 50
GTS800/50 50 50
GTS800/63 63 50
GTS800/75 75 50
GTS800/88 88 50
GTS800/91 91 50
GTS800/100 100 50

Designed to provide a structural connection between a truss and a girder truss or beam. Features a location tab allowing easy accurate alignment of the hanger. Suitable for face fix or wrap-over fixing.

  • Material – Produced from 1.2mm thick galvanised steel to BS EN 10346 +G275 as standard or stainless steel to order.
  • Fixing – Fix using either Type A or Type B fixings in all pre-punched holes:
    • Type A, 30mm x 3.75mm Sheradised Square Twist Nails usually supplied loose for manual fixing.
    • Type B, 35mm x 3.75mm Sheradised Square Twist Nails usually collated for nail gun fixing.
